Description
Technical Specifications
| Parameter | Specification |

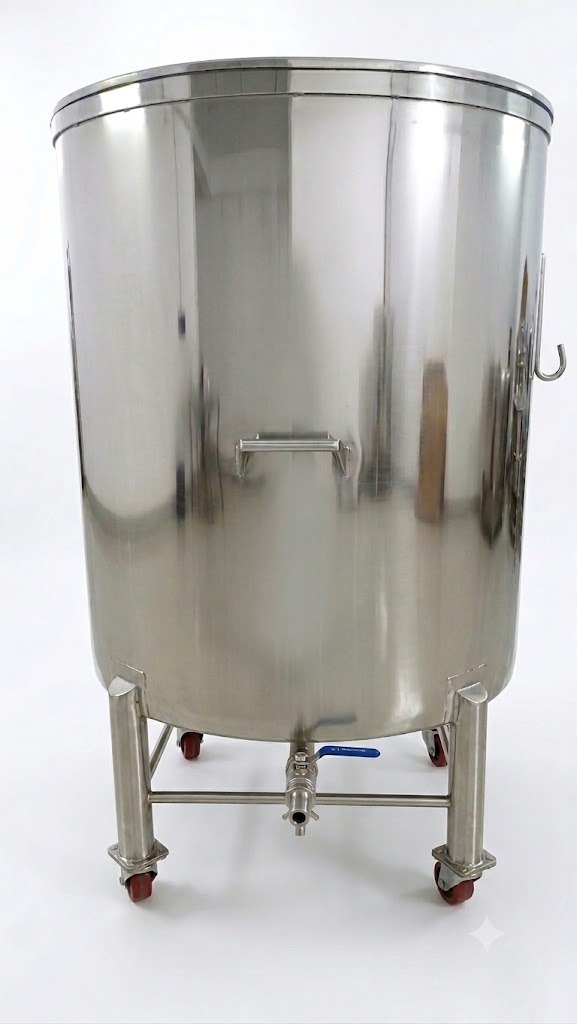

| Product Name | SS Storage Tank |
| Model | TEW-SST-50 to TEW-SST-2500 |
| Capacity | 50 Ltr. to 2500 Ltr. |
| Material of Construction | SS 304 / SS 316 / SS 316L |
| Tank Orientation | Vertical / Horizontal, as required |
| Tank Construction | Single Wall |
| Tank Shape | Cylindrical, customized as required |
| Bottom Design | Flat / Dished / Conical / Sloping |
| Internal Finish | Smooth / Mirror Polished / Electropolished |
| External Finish | Matt / Buff / Mirror Polish / SS 2B |
| Welding | ARGON-ARC welded, ground and polished |
| Thickness | Selected according to capacity, design and application |
| Top Cover | Fixed / Hinged / Removable |
| Outlet | Bottom outlet with sanitary valve |
| Drain | Flush / sanitary drain arrangement |
| Fittings | SS Ball Valve / Butterfly Valve / Tri-Clamp fittings |
Key Features
- Hygienic stainless-steel construction
- Available in SS 304, SS 316 and SS 316L
- Capacity range from 50 Ltr. to 2500 Ltr.
- Excellent corrosion resistance and long service life
- Smooth internal surface for easy cleaning
- Mirror-polished and electropolished options available
- Low product-retention design
- Sanitary valves and Tri-Clamp connections available
- Customized inlet, outlet, drain and vent arrangements
Applications
SS Storage Tanks are suitable for:
- Pharmaceutical liquid storage
- Syrup and oral liquid storage
- Solution and formulation storage
- Cosmetic and personal-care products
- Food and beverage processing
- Dairy and milk products
- Ayurvedic and herbal preparations
- Nutraceutical products
- Chemical and industrial liquids
- RO/DM water and process-water storage
- Intermediate and finished-product holding
Capacity Range
50 Ltr. | 100 Ltr. | 200 Ltr. | 300 Ltr. | 500 Ltr. | 750 Ltr. | 1000 Ltr. | 1500 Ltr. | 2000 Ltr. | 2500 Ltr.
Custom intermediate capacities can also be manufactured according to the customer’s process requirement.
Manufacturing Note
Tank dimensions, shell thickness, nozzle arrangement, bottom configuration and support structure are selected according to the required capacity, product characteristics, operating conditions and installation requirements. For pharmaceutical applications, SS 316L, sanitary fittings, polished internal surfaces and CIP/SIP provisions can be incorporated where required.
