Description
Salient Features
- Semi-automatic filling and sealing operation.
- Suitable for filling quantities from 5 to 100 GM.
- Suitable for plastic, laminate and compatible metal tubes.
- Designed for creams, ointments, gels, pastes, lotions and similar viscous products.
- Precision piston filling system for consistent filling.
- Product-contact parts manufactured in SS 316.
- Machine body manufactured in SS 304.
- Pneumatic operation for smooth and reliable performance.
- Adjustable filling volume.
- Foot-operated or push-button operation.
- Automatic tube positioning before filling.
- Suitable tube sealing system according to tube material.
- Easy-to-adjust filling and sealing parameters.
- Compact and space-saving design.
- Easy dismantling and cleaning.
- Low product wastage.
- Suitable for small-batch and medium-scale production.
- Optional batch coding/embossing arrangement.
- Optional hot-air sealing system for plastic and laminate tubes.
- Optional crimping arrangement for suitable aluminium/metal tubes.
Working Principle
Empty tubes are manually placed into the tube holder. The tube is accurately positioned below the filling nozzle, and the required quantity of product is dispensed through a precision filling mechanism.
After filling, the tube is transferred to the sealing station. Depending on the tube material, the machine can be configured with a suitable hot-air, heat-sealing, ultrasonic or crimping arrangement. The sealed tube can then be removed manually for collection and further inspection.
The filling volume and machine operating parameters can be adjusted according to the product characteristics and tube size.
Technical Specifications
| Parameter | Specification |
| Model | TEW-STF-100 |

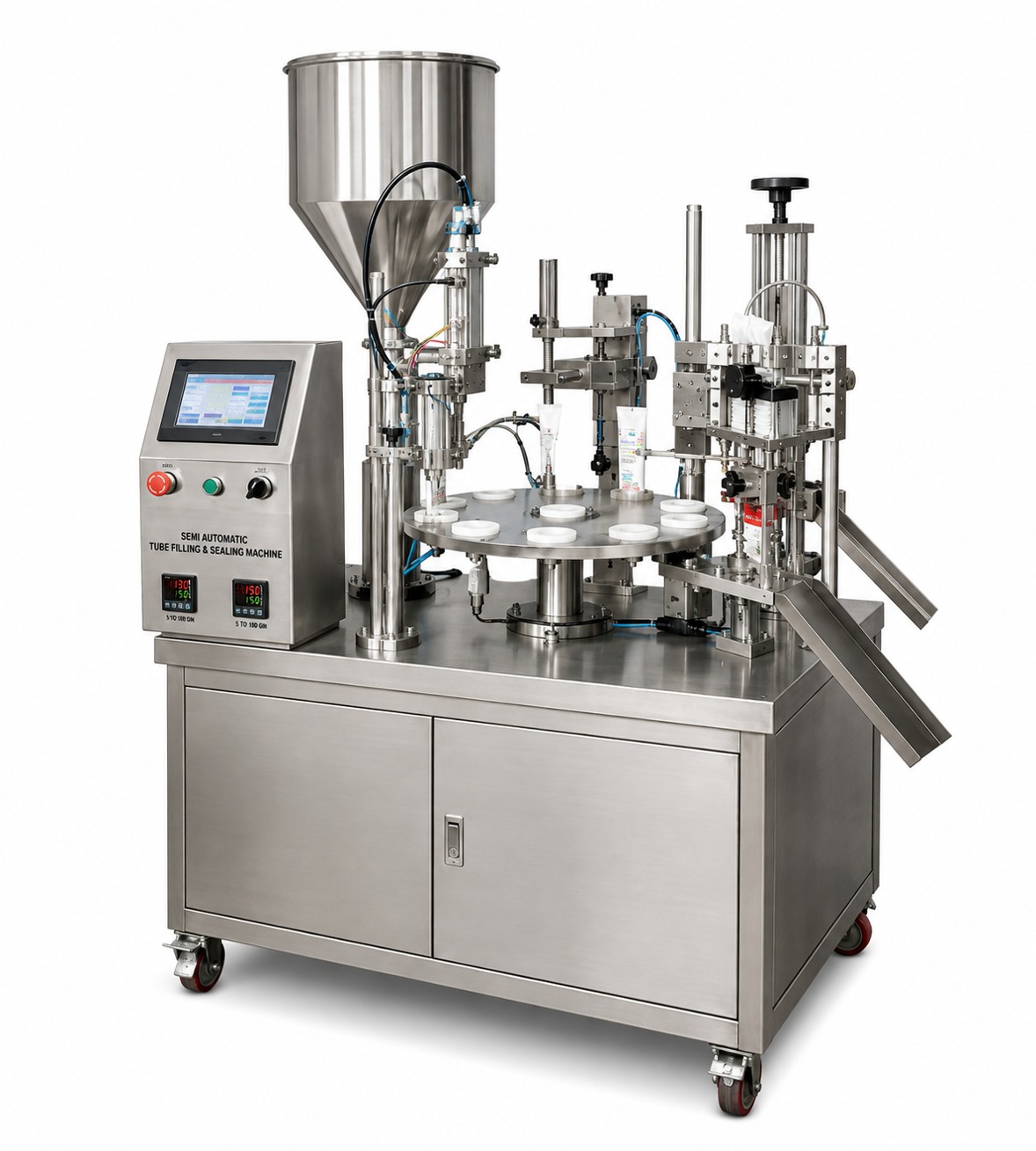

| Machine Type | Semi-Automatic Tube Filling & Sealing Machine |
| Filling Range | 5 to 100 GM |
| Filling Accuracy | Typically ±1–2%* |
| Suitable Products | Creams, Ointments, Gels, Pastes, Lotions & Similar Products |
| Suitable Tube Materials | Plastic, Laminate & Compatible Metal Tubes |
| Tube Diameter | Approx. 16–50 mm* |
| Filling System | Pneumatic Piston Type |
| Filling Nozzle | SS 316 |
| Product Contact Parts | SS 316 |
| Machine Construction | SS 304 |
| Operation | Semi-Automatic |
| Sealing | Hot-Air / Heat Sealing / Crimping – as applicable |
| Control | Pneumatic / Semi-Automatic |
| Air Requirement | Approx. 6–8 Bar Clean Compressed Air* |
| Electrical Supply | 230 V AC, 50 Hz, Single Phase |
| Approx. Dimensions | 800 × 600 × 1,500 mm* |
| Machine Type | GMP / Production Model |
*Specifications can be customized according to product viscosity, tube diameter, tube material and required production output.
Production Capacity
Approx. 15–30 Tubes/Minute
Actual output depends on:
- Filling quantity
- Product viscosity
- Tube diameter
- Tube material
- Sealing method
- Operator efficiency
- Machine configuration
Filling Range
The machine can be configured for different filling quantities within the 5–100 GM range, for example:
- 5 GM
- 10 GM
- 15 GM
- 20 GM
- 25 GM
- 30 GM
- 50 GM
- 75 GM
- 100 GM
Interchangeable filling components can be provided for different product volumes.
Standard Supply
- SS 304 Machine Body
- SS 316 Product Contact Parts
- Pneumatic Filling Cylinder
- Filling Nozzle
- Tube Holding Fixture
- Filling Hopper
- Tube Sealing Arrangement
- Pneumatic Control System
- Foot/Hand Operating Control
- Adjustable Filling Volume Mechanism
- Basic Tool Kit
- Operating & Maintenance Manual
Optional Accessories
- Additional Filling Nozzles
- Additional Filling Pistons
- Different Size Tube Holders
- Hot-Air Sealing System
- Ultrasonic Sealing System
- Aluminium Tube Crimping System
- Batch Coding / Embossing Unit
- Product Heating Arrangement
- Jacketed Hopper
- SS 316 Hopper
- CIP-compatible Product Path
- Spare Parts Kit
- Validation Documents – DQ, IQ, OQ & PQ
Applications
Pharmaceutical Industry
- Ointments
- Creams
- Gels
- Topical Formulations
- Pharmaceutical Pastes
Cosmetic Industry
- Face Creams
- Skin Creams
- Hair Creams
- Cosmetic Gels
- Lotions
Ayurvedic & Herbal Industry
- Herbal Ointments
- Ayurvedic Creams
- Herbal Gels
- Natural Formulations
Personal Care Industry
- Skin Care Products
- Hair Care Products
- Beauty Creams
- Specialty Pastes
Food Industry
- Sauces
- Pastes
- Specialty Food Products
- Flavoured Preparations
Advantages
- 5–100 GM adjustable filling range
- Accurate and repeatable filling
- Suitable for different tube materials
- Hygienic SS construction
- SS 316 product-contact parts
- Easy operation and adjustment
- Compact footprint
- Low product wastage
- Easy cleaning and maintenance
- Suitable for small and medium production batches
- Multiple sealing options
- Customizable according to product and tube requirements
