Description
Salient Features
- Foot-operated mechanical filling system
- Filling range of 5 to 100 GM
- Precision piston-type filling mechanism
- No electrical power required in standard configuration
- No compressed air required in standard configuration
- Adjustable filling volume
- Manual tube positioning and removal
- Foot pedal-controlled filling cycle
- Both hands remain free for tube handling
- Suitable for creams, ointments, gels, pastes and lotions
- Compatible with plastic, laminate and suitable metal tubes
- SS 304 machine construction
- SS 316 product-contact parts
- SS 316 filling nozzle and product-contact components
- Compact and robust floor-mounted design
- Adjustable tube holding arrangement
- Low product wastage
- Easy dismantling and cleaning
- Simple operation with minimal operator training
- Low maintenance requirement
- Interchangeable filling nozzles available
- Suitable for laboratory, R&D and small-batch production
- Filling components can be customized according to product and tube requirements

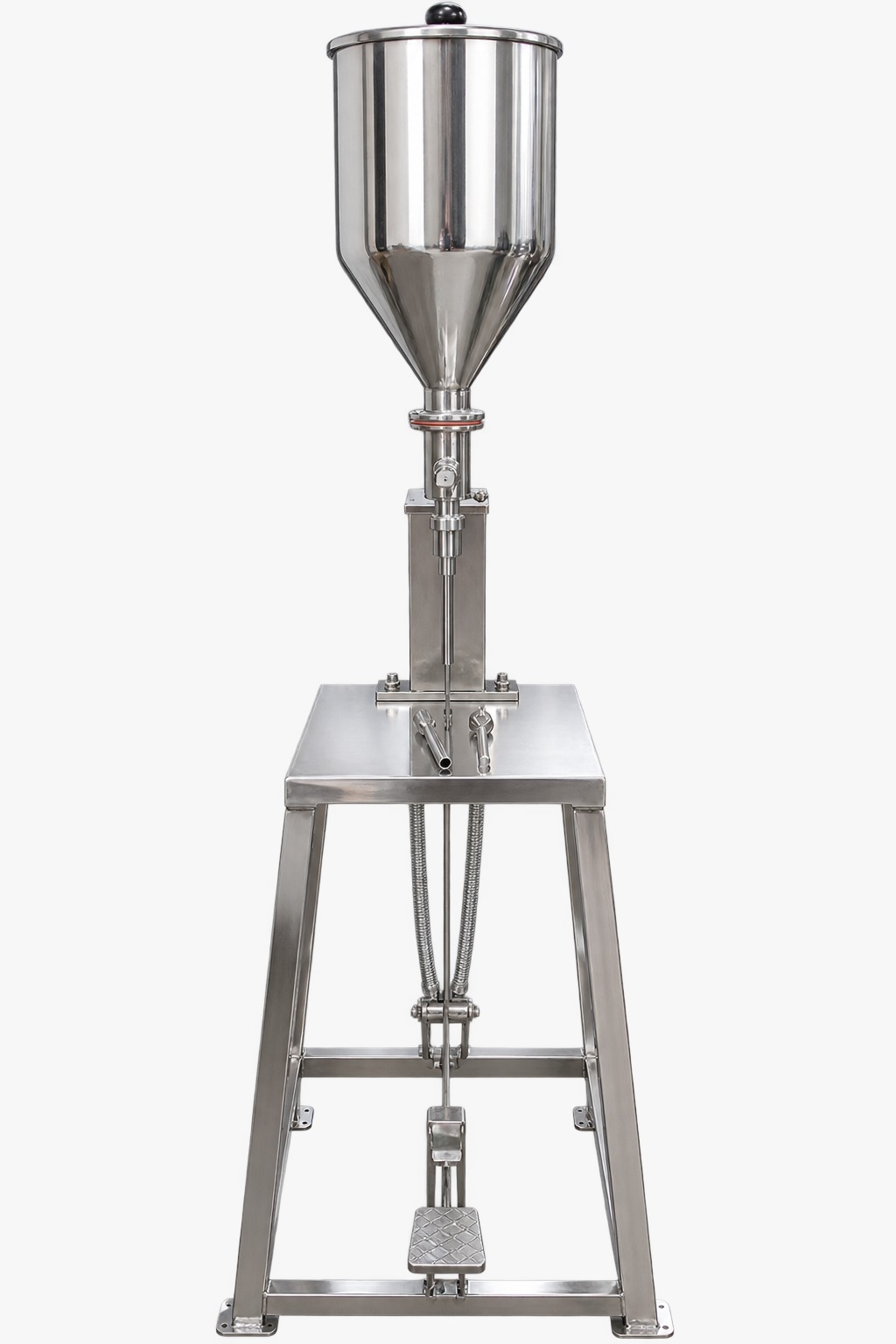

Working Principle
The product is filled into the machine hopper. An empty tube is manually positioned below the filling nozzle and secured using the adjustable tube-holding arrangement.
The operator presses the foot pedal to actuate the mechanical filling mechanism. The piston draws the required quantity of product from the hopper and dispenses it through the filling nozzle into the tube.
After the filling cycle, the operator releases the foot pedal, removes the filled tube and positions the next empty tube.
The filling volume can be adjusted according to the required quantity within the selected filling range. After filling, the tubes can be transferred to a suitable tube sealing, crimping or closing machine.
Technical Specifications
| Parameter | Specification |
| Model | TEW-FOTF-100 |
| Machine Type | Foot Operated Tube Filling Machine |
| Filling Range | 5–100 GM |
| Filling Principle | Piston Type |
| Operation | Foot Pedal Operated |
| Filling Cycle | Mechanical |
| Suitable Products | Creams, Ointments, Gels, Pastes, Lotions & Semi-Viscous Products |
| Suitable Tube Materials | Plastic, Laminate & Compatible Metal Tubes |
| Filling Accuracy | Typically ±1–2%* |
| Machine Construction | SS 304 |
| Product Contact Parts | SS 316 |
| Filling Nozzle | SS 316 |
| Hopper | SS Construction |
| Tube Holding | Adjustable Manual Tube Holder |
| Volume Adjustment | Adjustable |
| Power Requirement | No Electrical Power Required |
| Compressed Air | Not Required in Standard Configuration |
| Operation Control | Foot Pedal |
| Machine Mounting | Floor Mounted |
| Approx. Dimensions | 600 × 450 × 1,200 mm* |
| Machine Category | Manual / Small-Batch Model |
*Actual specifications may vary according to filling range, product viscosity, tube dimensions and customized machine configuration.
Filling Range
The machine can be configured for filling quantities between 5 and 100 GM, including:
- 5 GM
- 10 GM
- 15 GM
- 20 GM
- 25 GM
- 30 GM
- 50 GM
- 75 GM
- 100 GM
Different piston and filling assemblies can be provided according to the required filling range and product characteristics.
Production Capacity
Approx. 10–20 Tubes/Minute
Actual production output depends upon:
- Filling quantity
- Product viscosity
- Tube size
- Product flow characteristics
- Filling mechanism
- Operator working speed
- Tube loading and unloading time
Standard Supply
- SS 304 machine frame
- SS product hopper
- SS 316 product-contact components
- SS 316 filling nozzle
- Precision piston filling assembly
- Adjustable filling-volume mechanism
- Adjustable tube-holding fixture
- Mechanical foot pedal
- Foot pedal linkage assembly
- Product inlet and outlet arrangement
- Basic tool kit
- Operating and maintenance manual
Optional Accessories
- Additional filling nozzles
- Additional piston assemblies
- Different capacity filling sets
- Additional tube holders
- SS 316 hopper
- Tube sealing unit
- Hot-air tube sealing machine
- Aluminium tube crimping unit
- Batch coding / embossing attachment
- Product heating arrangement
- Jacketed hopper
- Spare parts kit
- DQ, IQ, OQ & PQ documentation package
Applications
Pharmaceutical Industry
- Ointments
- Topical creams
- Pharmaceutical gels
- Pharmaceutical pastes
- Trial and pilot batches
Cosmetic Industry
- Face creams
- Skin creams
- Hair creams
- Cosmetic gels
- Lotions
Ayurvedic & Herbal Industry
- Ayurvedic ointments
- Herbal creams
- Herbal gels
- Natural formulations
- Herbal pastes
Personal Care Industry
- Skin-care products
- Hair-care products
- Beauty creams
- Specialty formulations
Food Industry
- Food pastes
- Sauces
- Specialty food preparations
- Thick food products
Laboratory & R&D
- Laboratory batches
- Pilot-scale production
- Product development
- Small trial batches
Advantages
- 5–100 GM adjustable filling range
- Convenient foot-operated operation
- No electrical power required
- No compressed air required in standard configuration
- Both hands available for tube handling
- Simple mechanical construction
- Consistent and repeatable filling
- Low initial investment
- Low operating cost
- Minimal product wastage
- Hygienic stainless-steel construction
- Easy cleaning and maintenance
- Compact floor-mounted design
- Easy filling-volume adjustment
- Suitable for small production batches
- Ideal for laboratory and R&D applications
- Easy to operate and maintain
- Customizable filling components
