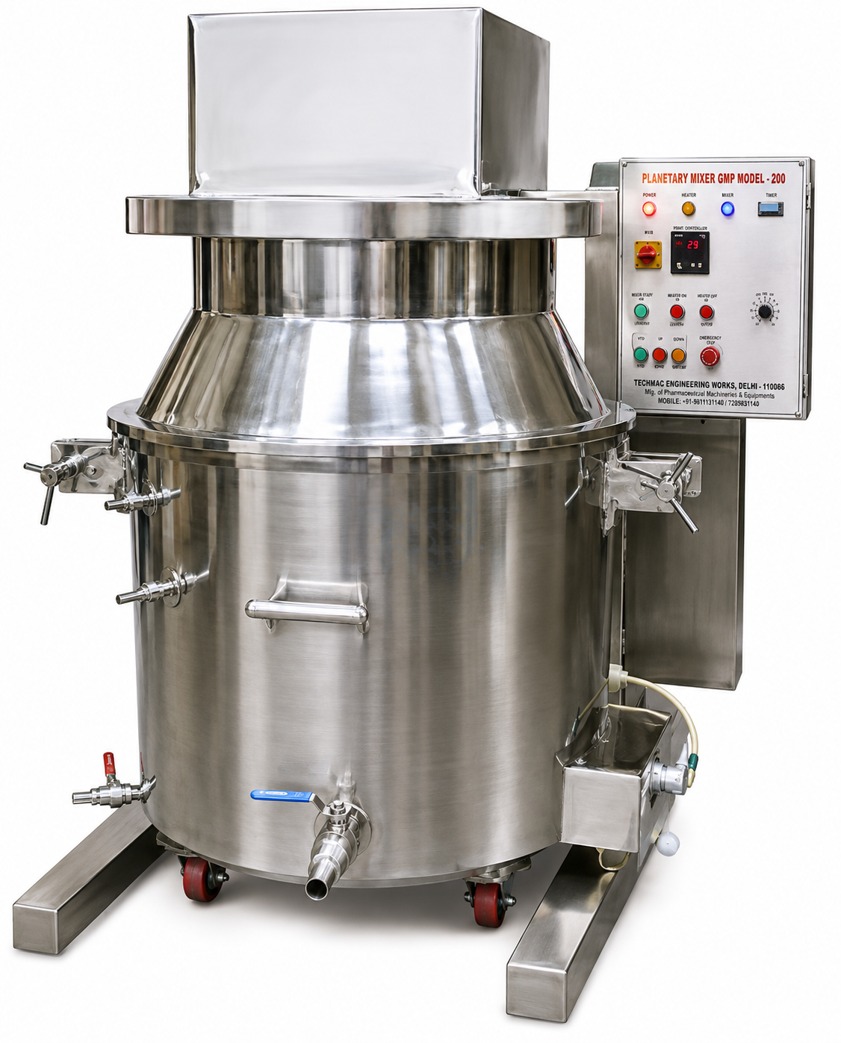

Planetary Mixer – 5 to 300 Litres

Category:

Product Overview

The TECHMAC Planetary Mixer – 5 to 300 Litres is a heavy-duty, high-efficiency mixing machine designed for homogeneous mixing, blending, kneading, and processing of low- to high-viscosity products. Its planetary mixing action provides intensive and uniform mixing throughout the vessel, making it suitable for pharmaceutical, nutraceutical, food, cosmetic, Ayurvedic, herbal, chemical, and allied industries.

The mixer is available in a wide capacity range from 5 Litres to 300 Litres and can be customized according to product viscosity, batch size, mixing time, temperature requirements, and process conditions. GMP-oriented construction, stainless-steel product-contact parts, variable-speed operation, and optional heating, cooling, and vacuum arrangements make it suitable for demanding industrial applications.

Description

Salient Features

  • Available from 5 to 300 Litres
  • Complete range of laboratory, pilot and production models
  • Efficient planetary mixing action
  • Suitable for low, medium and high-viscosity products
  • GMP-oriented hygienic construction
  • Product-contact parts in SS 316 / SS 316L
  • Non-contact parts in SS 304
  • Variable-speed mixing operation
  • Heavy-duty geared drive system
  • Robust and vibration-free construction
  • Easy-to-clean mixing vessel
  • Different agitator designs available
  • Suitable for batch-wise operation
  • Top-mounted planetary drive assembly
  • Safety interlock arrangement
  • Optional heating and cooling jacket
  • Optional vacuum mixing system
  • Optional tilting/removable vessel
  • PLC/HMI automation available
  • Suitable for pharmaceutical, food and cosmetic applications
  • Customized construction available according to product requirements



Working Principle

The TECHMAC Planetary Mixer operates on the principle of planetary movement. The mixing tool rotates around its own axis while simultaneously revolving around the central axis of the mixing vessel.

This dual movement continuously moves the material from the vessel wall toward the centre and from the bottom toward the upper mixing zone. The result is intensive and homogeneous mixing with minimum dead zones.

Different mixing tools can be selected according to the nature of the product. Paddle, beater, scraper and kneading-type blades can be supplied for different viscosity and processing requirements.

For oxygen-sensitive or moisture-sensitive products, the mixer can optionally be supplied with a vacuum mixing arrangement.







Model & Capacity Range

Model Nominal Capacity Recommended Working Capacity* Approx. Motor Range Typical Mixing Speed** Typical Application
TEW-5 5 Ltr 3–4 Ltr 0.5–1 HP 20–100 RPM Laboratory / R&D
TEW-10 10 Ltr 6–8 Ltr 0.5–1.5 HP 20–100 RPM Laboratory / Pilot Batch
TEW-25 25 Ltr 15–20 Ltr 1–2 HP 15–90 RPM Pilot Production
TEW-50 50 Ltr 30–40 Ltr 2–3 HP 15–80 RPM Small-Scale Production
TEW-75 75 Ltr 45–60 Ltr 3–5 HP 10–70 RPM Production
TEW-100 100 Ltr 60–80 Ltr 3–5 HP 10–70 RPM Production
TEW-150 150 Ltr 90–120 Ltr 5–7.5 HP 8–60 RPM Medium Production
TEW-200 200 Ltr 120–160 Ltr 7.5–10 HP 8–50 RPM Medium / Large Production
TEW-250 250 Ltr 150–200 Ltr 10–15 HP 5–45 RPM Large Production
TEW-300 300 Ltr 180–240 Ltr 10–15 HP 5–45 RPM Large Batch Production

* Working capacity depends on product density, viscosity, aeration characteristics, filling level and selected agitator.
** Mixing speed is application-dependent and may be customized according to the product and process requirement.





Technical Specifications

Parameter Specification
Machine Type Planetary Mixer
Capacity Range 5 to 300 Litres
Model Range TEW-5 to TEW-300
Mixing Principle Planetary Movement
Operation Batch Type
Vessel Material SS 316 / SS 316L
Non-Contact Material SS 304
Mixing Tools Paddle / Beater / Scraper / Kneading Blade
Drive System Heavy-Duty Geared Motor
Motor Capacity Approx. 0.5 to 15 HP, depending on model and application
Speed Control VFD / Variable Speed Drive
Mixing Speed Application-dependent
Vessel Design Fixed / Removable / Tilting
Vessel Construction SS Fabricated Cylindrical Bowl
Vessel Cover SS 304 / SS 316
Heating System Optional Jacketed Vessel
Cooling System Optional Jacketed Vessel
Vacuum System Optional
Control Panel Digital / PLC-HMI
Temperature Control Optional Digital Temperature Controller
Timer Digital Timer, Optional
Safety System Emergency Stop & Safety Interlock
Surface Finish Hygienic / Buff / Mirror Polish
Mounting Floor Mounted
Power Supply 415 V, 3 Phase, 50 Hz*

* Electrical specifications may vary according to capacity, motor selection and customer requirements.

Standard Construction

Component Material / Description
Mixing Vessel SS 316 / SS 316L
Mixing Tools SS 316 / SS 316L
Main Shaft SS 316 / SS 316L
Planetary Head Heavy-Duty Fabricated Construction
Main Frame SS 304 / Heavy-Duty Construction
Drive Unit Geared Motor with VFD
Bearings Heavy-Duty Sealed Bearings
Vessel Cover SS 304 / SS 316
Scraper PTFE / Food-Grade Material, where required
Control Panel SS 304 Enclosure
Safety System Emergency Stop & Safety Interlock
Internal Finish Smooth / Mirror Polished
External Finish Matt / Buff / Mirror Finish as required

Available Mixing Tools

Paddle / Blade Agitator

Suitable for general-purpose mixing, blending and uniform distribution of ingredients.

Beater Agitator

Suitable for creams, pastes, emulsions and medium-viscosity products.

Scraper Agitator

Designed to continuously remove material from the vessel wall and improve mixing efficiency and heat transfer.

Kneading Tool

Suitable for dense, heavy and high-viscosity products such as doughs, thick pastes, ointments and similar materials.

Optional Features & Accessories

  • Vacuum planetary mixing arrangement
  • Heating jacket
  • Cooling jacket
  • Hot-water circulation system
  • Chilled-water circulation system
  • PLC-based automatic control
  • Touch Screen HMI
  • VFD variable-speed control
  • Digital timer
  • Digital temperature indicator/controller
  • Load-cell weighing system
  • Hydraulic vessel lifting arrangement
  • Tilting vessel arrangement
  • Removable mixing bowl
  • Scraper assembly
  • Customized mixing blades
  • SS 316L complete contact construction
  • Mirror-polished internal surface
  • CIP-compatible construction
  • Vacuum gauge
  • Vacuum pump
  • Product discharge valve
  • Safety guard
  • Safety interlocking system
  • Batch data recording
  • Automatic recipe management

Applications

Pharmaceutical Industry

  • Ointment Manufacturing
  • Cream Manufacturing
  • Gel Preparation
  • Pharmaceutical Pastes
  • Wet Mass Preparation
  • Granulation Materials
  • Semi-Solid Formulations

Nutraceutical Industry

  • Nutraceutical Pastes
  • Supplement Formulations
  • Herbal/Nutritional Preparations
  • High-Viscosity Blends

Cosmetic Industry

  • Creams
  • Lotions
  • Face Packs
  • Hair Products
  • Cosmetic Pastes
  • Thick Cosmetic Formulations

Food Industry

  • Bakery Products
  • Dough and Fillings
  • Confectionery Mixtures
  • Sauces and Pastes
  • Chocolate-Based Products
  • Food Concentrates

Ayurvedic & Herbal Industry

  • Herbal Pastes
  • Ayurvedic Formulations
  • Chyawanprash-Type Products
  • Herbal Creams
  • Extract-Based Preparations

Chemical Industry

  • Adhesives
  • Sealants
  • Pigment Mixtures
  • High-Viscosity Compounds
  • Specialty Chemical Formulations

Advantages

  • Excellent homogeneous mixing
  • Efficient planetary movement
  • Suitable for high-viscosity materials
  • Uniform mixing throughout the vessel
  • Reduced dead zones
  • Multiple agitator options
  • Variable-speed operation
  • Hygienic GMP-oriented construction
  • Easy cleaning and maintenance
  • Robust industrial construction
  • Suitable for continuous production requirements
  • Heating, cooling and vacuum options available
  • Customized according to product and process requirements
