Description

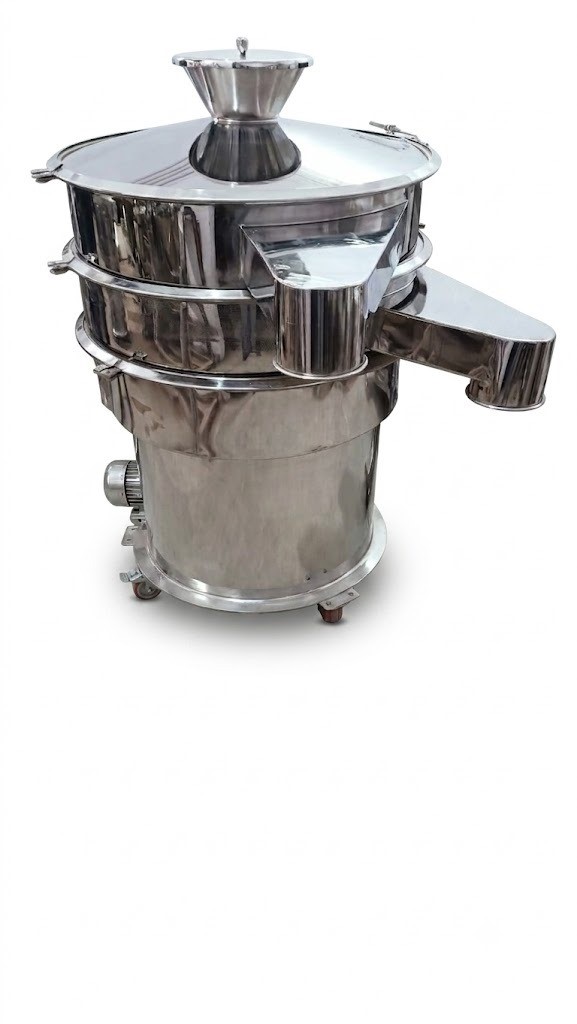

Salient Features
- GMP model with SS 316 / SS 304 contact parts (mirror polished).
- High-speed vibro motor with adjustable amplitude.
- Multiple deck options (single, double, or triple deck) for multi-stage separation.
- Easy-to-change screens with clamping ring and quick-release mechanism.
- Dust-free operation with optional dust cover and discharge spout.
- Compact, portable design on castor wheels.
- Low noise and low power consumption.
- FDA-approved silicon or rubber molded gaskets (optional).
- Optional: Flameproof motor, ultrasonic deblinding, magnetic trap, inline models.
Working Principle
The material is fed onto the center of the vibrating screen. The vibro motor generates three-dimensional (horizontal + vertical) gyratory motion. This causes the material to stratify and pass through the mesh according to particle size. Oversize particles are discharged from the top outlet while undersized material passes through.
Technical Specifications
| Model | Diameter (inch) | Screen Area (m²) | Capacity (kg/hr)* | Motor Power (HP) | No. of Decks | Approx. Dimensions (mm) |
| TEW-VS-20 | 20″ | 0.25 | 50 – 200 | 0.5 | 1-2 | 800 x 800 x 900 |
| TEW-VS-30 | 30″ | 0.45 | 100 – 500 | 0.75 – 1 | 1-3 | 950 x 950 x 1100 |
| TEW-VS-36 | 36″ | 0.65 | 200 – 800 | 1 – 1.5 | 1-3 | 1050 x 1050 x 1200 |
| TEW-VS-48 | 48″ | 1.1 | 500 – 1500 | 2 | 1-3 | 1400 x 1400 x 1350 |
*Capacity depends on material characteristics, mesh size, and feed rate.
Mesh Size: 4 mesh to 400 mesh (custom available).
Notes
Power supply: 415V / 230V, 50Hz, 3 Phase / Single Phase.
Higher diameters and custom configurations available on request.
Applications
- Pharmaceutical: API sieving, granule grading, tablet dedusting.
- Food: Flour, spices, sugar, grains.
- Chemical: Pigments, dyes, powders.
- Others: Cosmetics, minerals, plastics.
