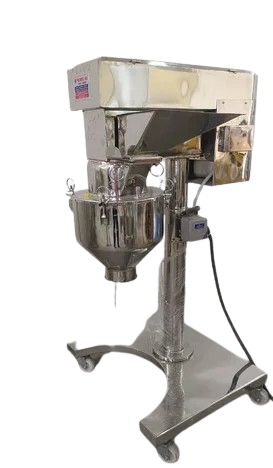

Description
Salient Features
- GMP model with SS 316 contact parts (SS 304 optional).
- High-speed rotor with swing-type hammer blades (6-12 blades, 2 Scrapper depending on model).
- Interchangeable perforated screens for different particle sizes (0.5 mm to 10 mm or more).
- Easy to dismantle and clean – quick change of screens and blades.
- Castor wheels with brakes for mobility (in smaller models).
- Overload protection and safety guards.
- Direction of blade rotation can be reversed for different applications.
- Compact design with minimal floor space.
- Optional: Flameproof motor, variable speed drive (VFD), dust collection system, jacketed hopper.
Working Principle
Material is fed through the hopper into the processing chamber. The high-speed rotating blades (hammers) exert impact, cutting, and shearing forces on the material against the screen. The processed material passes through the screen holes and is collected at the bottom discharge. Particle size is controlled by screen size and blade speed.
Technical Specifications
| Model | Rotor Speed (RPM) | Output Capacity (kg/hr)* | Motor Power (HP) | Screen Diameter (mm) | Approx. Dimensions (L x W x H in mm) |
| TEW-MM-50 | 1000 – 2800 | 10 – 50 | 1 – 1.5 | 150 | 700 x 500 x 1100 |
| TEW-MM-100 | 1000 – 2800 | 50 – 100 | 2 – 3 | 200 | 850 x 600 x 1250 |
| TEW-MM-200 | 1000 – 2800 | 100 – 200 | 3 – 5 | 260 | 950 x 700 x 1350 |
| TEW-MM-300 | 1000 – 2800 | 200 – 300 | 5 – 7.5 | 300 | 1100 x 800 x 1450 |
| TEW-MM-500 | 1000 – 2800 | 300 – 500 | 7.5 – 10 | 350 | 1250 x 900 x 1550 |
*Output capacity depends on material type, screen size, and feed rate.
Notes
Power supply: 415V, 50Hz, 3 Phase (customizable).
Higher capacities and special features (e.g., CIP, vacuum loading) available on request.
All contact parts are mirror polished.
Applications
Pharmaceutical: Granulation, tablet rework, API milling.
Food: Spices, grains, sugar, herbs.
Chemical: Pigments, dyes, resins.
Cosmetics & Herbal: Powder making, ointments.
