Description

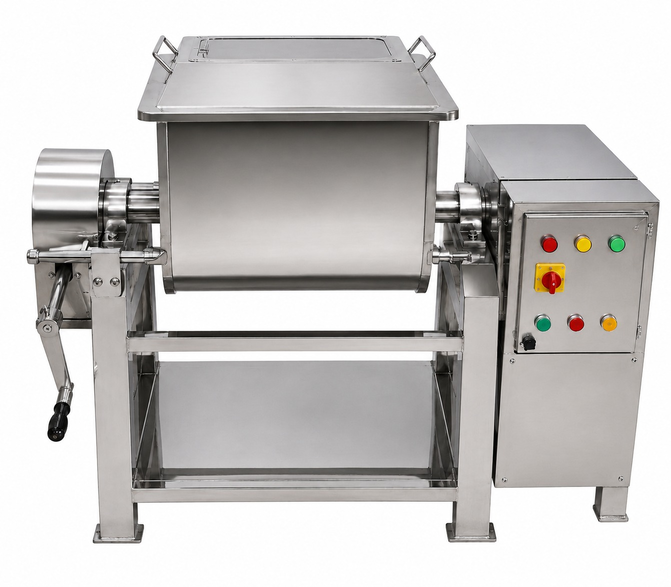

Salient Features
- cGMP model with SS 316 contact parts (SS 304 optional).
- Paddle agitator for thorough mixing of heavy/sticky materials.
- Transparent hinged dust cover with safety interlock.
- Tilting arrangement for easy unloading and cleaning.
- Robust worm gearbox drive with TEFC motor.
- Bottom discharge valve (manual/pneumatic options).
- Easy lubrication points; leak-proof sealing.
- All guards and safety features as per standards.
- Optional: Variable speed (VFD), jacketed trough, flameproof motor.
Working Principle
Material is charged into the U-shaped trough. The slowly rotating paddle stirrer provides folding and shearing action for homogeneous mixing. Discharge is through bottom valve or by tilting the container.
Technical Specifications
| Model | Working Capacity (kg) | Gross Volume (Liters) | Working Volume (Liters) | Stirrer Speed (RPM) | Motor Power (HP) |
| TEW-20 | 10-20 | 50 | 30-35 | 30-35 | 1 |
| TEW-50 | 25-50 | 110 | 70-80 | 30-35 | 2 |
| TEW-100 | 50-100 | 220 | 150-160 | 28-32 | 3 |
| TEW-150 | 100-150 | 330 | 230-250 | 24-28 | 5 |
| TEW-200 | 150-200 | 425 | 300-325 | 24-28 | 7.5 |
| TEW-300 | 200-300 | 560 | 400-450 | 24 | 10 |
| TEW-400 | 300-400 | 750+ | 550-600 | 20-24 | 12.5 |
Notes
Power supply: 415V, 50Hz, 3 Phase (customizable).
Higher capacities and special features available on request.
Dimensions & weight provided on specific inquiry.
Applications
Pharmaceutical tablet granulation, powder blending, food products, chemicals, cosmetics, etc.
