Description
Salient Features
- cGMP-compliant stainless steel construction.
- Available in 100 Hole and 300 Hole models.
- Suitable for Hard Gelatin and HPMC (Vegetarian) capsules.
- Compatible with capsule sizes 00, 0, 1, 2, 3, 4 & 5 using interchangeable change parts.
- Precision-machined capsule plates ensure accurate capsule alignment.
- Smooth capsule separation, filling, locking, and ejection.
- High filling accuracy with minimal powder wastage.
- Manual operation—no electricity required.
- Compact tabletop design with space-saving construction.
- Easy assembly, dismantling, and cleaning.
- Corrosion-resistant SS 304 body for long service life.
- Lightweight, portable, and operator-friendly.
- Low maintenance and economical operation.
- Optional SS 316 product contact parts available.
- Designed according to current cGMP guidelines.
Working Principle

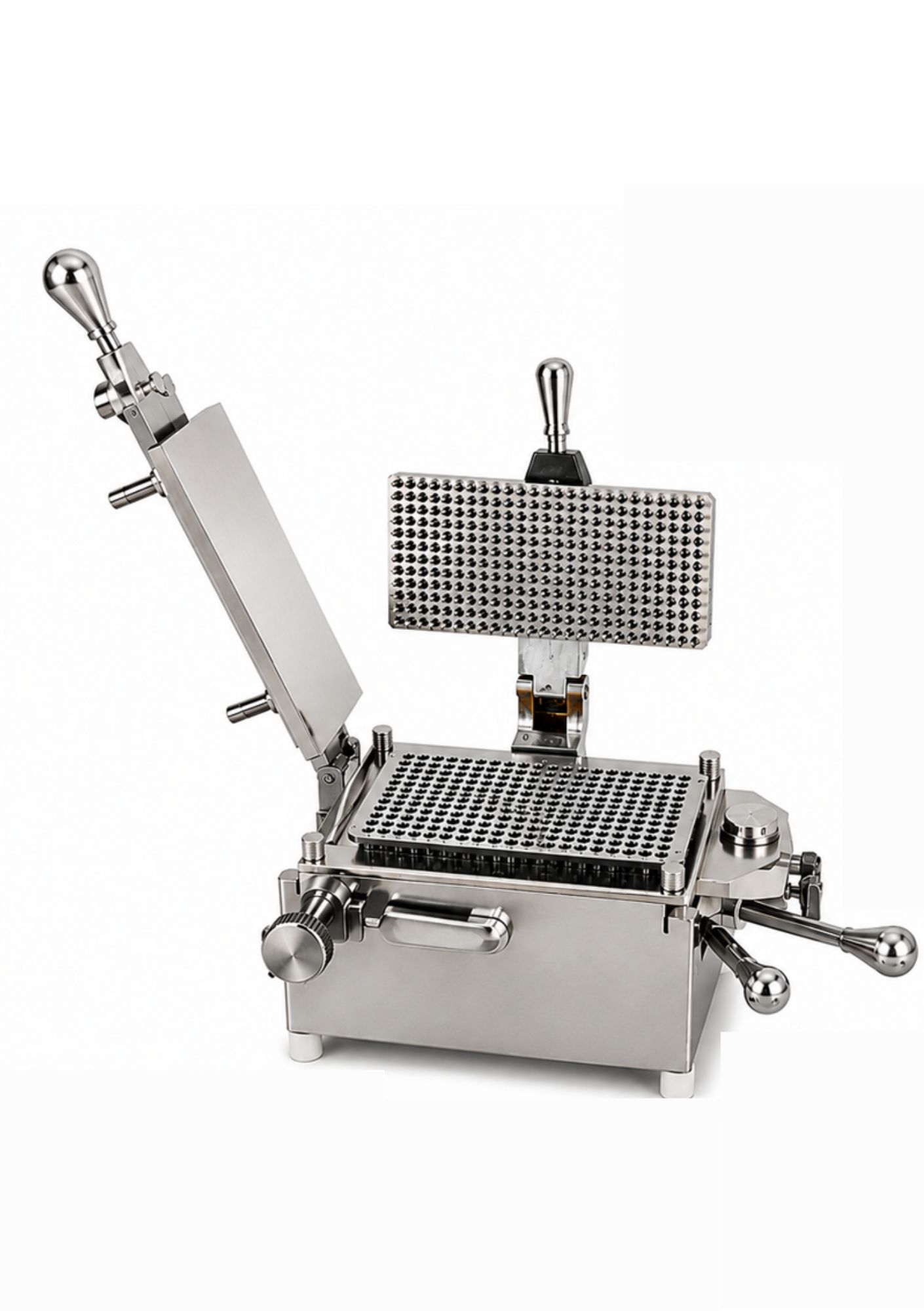

Empty capsules are placed into the loading plate and aligned using the capsule loading tray. The separation plate divides the capsule caps from the bodies. Powder or granules are evenly distributed into the capsule bodies using the powder tray and spreader, while tamping ensures uniform filling density. Once filling is complete, the capsule caps are repositioned and securely locked using the locking plate. The finished capsules are then ejected from the machine, ensuring consistent filling with minimal product loss.
Technical Specifications
| Parameter | TEW-MCF-100 | TEW-MCF-300 |
| Machine Type | Manual Capsule Filling Machine | Manual Capsule Filling Machine |
| Capacity per Cycle | 100 Capsules | 300 Capsules |
| Suitable Capsules | Hard Gelatin & HPMC | Hard Gelatin & HPMC |
| Capsule Sizes | 00, 0, 1, 2, 3, 4 & 5 | 00, 0, 1, 2, 3, 4 & 5 |
| Operation | Manual | Manual |
| Construction | SS 304 | SS 304 |
| Optional Contact Parts | SS 316 | SS 316 |
| Approx. Dimensions (L × W × H) | 420 × 320 × 180 mm | 600 × 450 × 220 mm |
| Machine Type | Tabletop GMP Model | Tabletop GMP Model |
Standard Features
- Precision capsule loading system.
- High-quality stainless steel construction.
- Hygienic GMP design.
- Easy capsule size conversion.
- Smooth capsule locking mechanism.
- Uniform powder distribution.
- Compact tabletop installation.
- Easy maintenance and cleaning.
- Long service life.
- Excellent operational reliability.
Production Capacity
| Model | Approximate Output* |
| TEW-MCF-100 | Up to 2,500–4,000 Capsules/Hour |
| TEW-MCF-300 | Up to 6,000–10,000 Capsules/Hour |
*Actual production depends on capsule size, powder characteristics, operator skill, and filling method.
Standard Supply

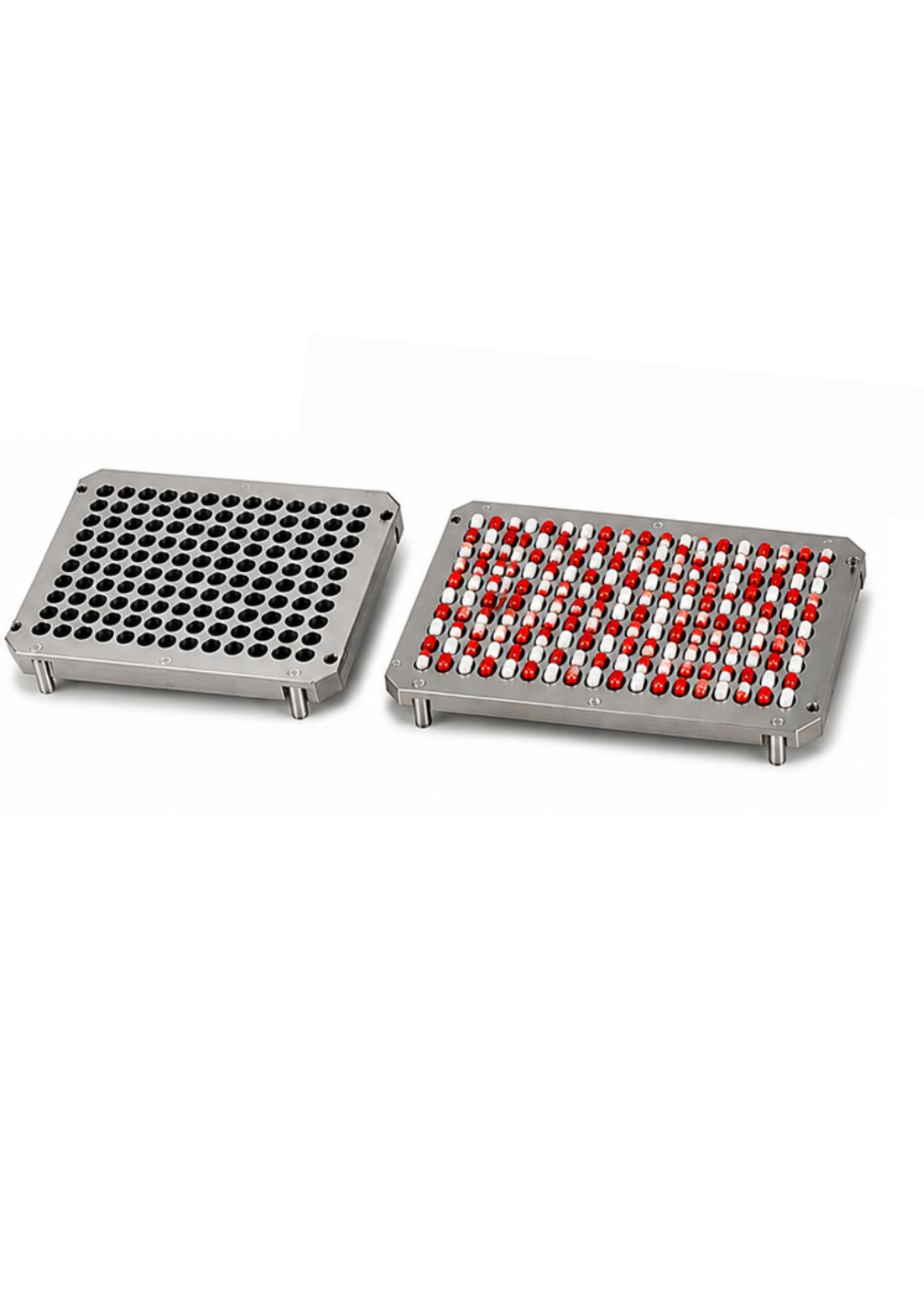

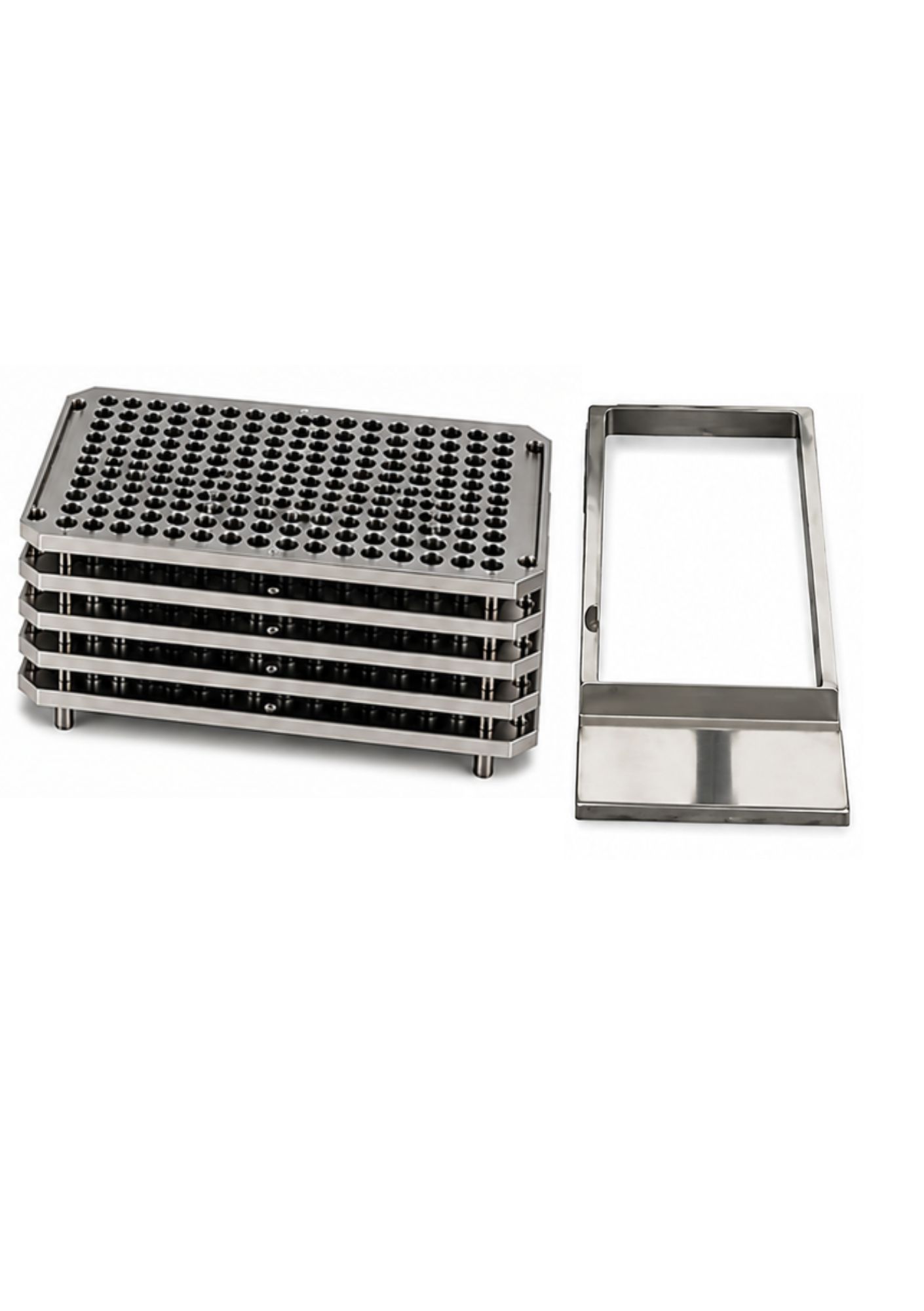

- Capsule Loading Plate
- Capsule Separation Plate
- Powder Filling Tray
- Powder Spreader
- Tamping Plate
- Capsule Locking Plate
- Capsule Ejection Plate
- Cleaning Brush
- Operating Manual
Optional Accessories
- Capsule Size Change Parts (00 to 5)
- Additional Capsule Plates
- SS 316 Contact Parts
- Powder Spreader
- Tamping Tool
- Cleaning Brush Set
- Spare Parts Kit
- Validation Documents (DQ, IQ, OQ & PQ)
Applications
Pharmaceutical Industry
- Capsule Manufacturing
- Generic Medicines
- API Formulations
- Pilot Batch Production
- Contract Manufacturing
- Quality Control Laboratories
- Research & Development
Nutraceutical Industry
- Vitamin Capsules
- Protein Supplements
- Dietary Supplements
- Herbal Nutrition Products
- Mineral Capsules
Ayurvedic & Herbal Industry
- Herbal Powder Capsules
- Ayurvedic Formulations
- Botanical Extract Capsules
- Natural Health Products
Food & Healthcare Industry
- Functional Food Capsules
- Health Supplements
- Nutraceutical Ingredients
Educational & Research Institutes
- Pharmaceutical Colleges
- Laboratory Training
- Product Development
- Research Laboratories
Advantages
- No electricity required.
- Easy and safe manual operation.
- High capsule filling accuracy.
- Reduces powder wastage.
- Quick capsule size changeover.
- Compact and portable design.
- Suitable for laboratory and production use.
- Hygienic stainless steel construction.
- Low operating and maintenance cost.
- Reliable long-term performance.
